CNY44 analog isolating circuit

Published:2011/4/2 3:08:00 Author:may | Keyword: analog isolating | From:SeekIC

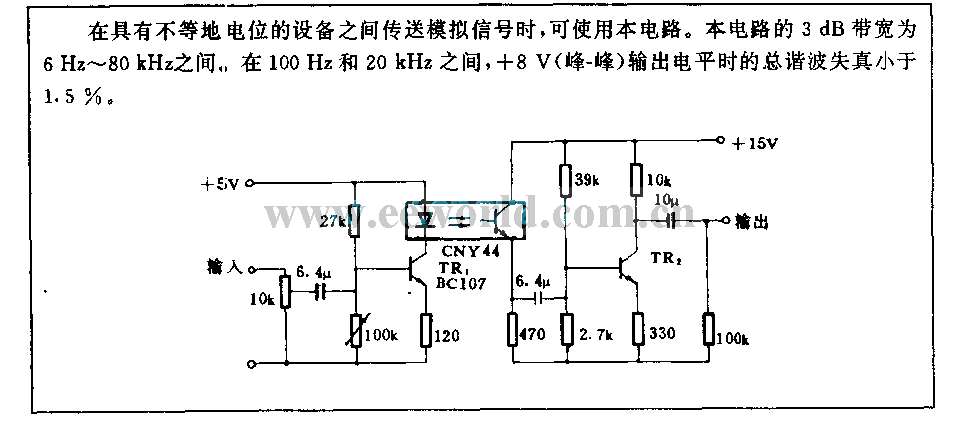

We can use this circuit when sending analog signal between equipments which have differ ground electric potential. The 3dB bandwidth of this circuit is between 6Hz~80kHz. Between 100Hz and 20kHz, the total harmonic distortion is less than 1.5% when +8V (pak-peak) output level.
