CMOS SCHMITT TRIGGER IC MAKES VCO

Published:2012/9/5 20:52:00 Author:Ecco | Keyword: CMOS , SCHMITT TRIGGER , IC, VCO | From:SeekIC

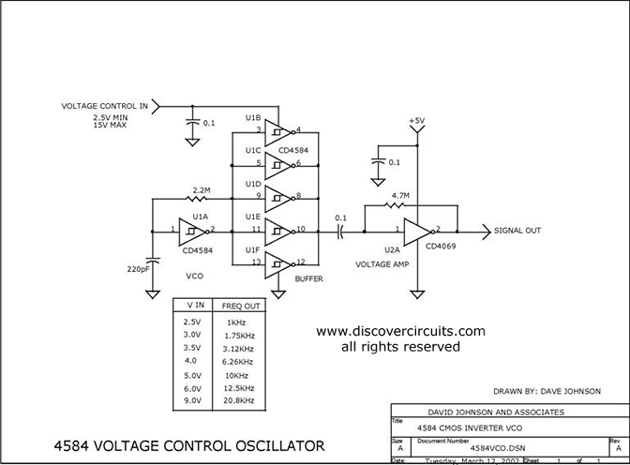

By changing the supply voltage fed to a classic 4584 Schmitt trigger type oscillator, the oscillator frequency can be changed over a range of 50:1. A 74HCU04 inverter is used at the output of the 4584 to maintain a constant TTL logic level signal. Source: discovercircuits
