CMOS_INTERFACE_FOR_VMOS

Published:2009/7/2 21:03:00 Author:May | From:SeekIC

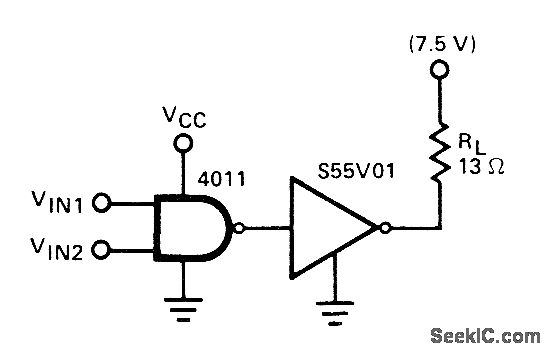

Simple 4011 CMOS gate connection provides required logic interface for S55V01 VMOS that is capable of handling up to 1 A. Switching time is about 25 ns but can be doubled by connecting four CMOS gates in parallel. Vcc can be either 10 or 15V.-L. Shaeffer, VMOS Peripheral Drivers Solve High Power Load Interface Problems, Computer Design, Dee. 1977, p 90, 94, and 96-98.
