CMOS_INTERFACE_FOR_OPAMP

Published:2009/7/2 4:08:00 Author:May | From:SeekIC

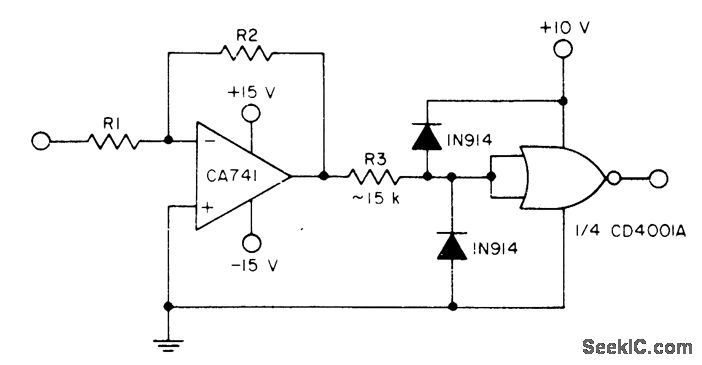

Clamp diodes and single resistor provide interface between CMOS circuit and opamp operating between normal ±15 V supply rails. Diodes ensure that CMOS input voltage does not go outside permissible range．－ COS/MOS Integrated Circults, RCA Solid State Division,Somerville,NJ,1977,p 629
