CLOCK_PULSES

Published:2009/7/16 3:48:00 Author:Jessie | From:SeekIC

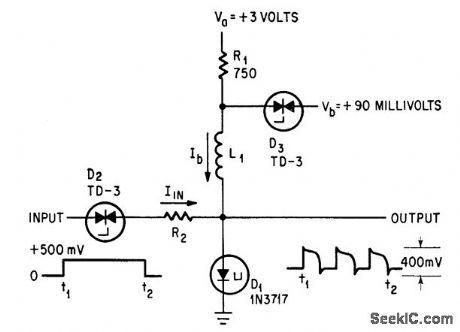

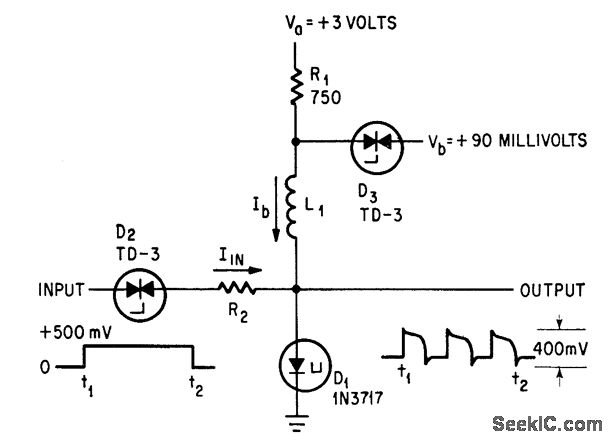

Tunnel-diode one-shot produces number of pulses in series, proportional to value of L1 and width of input pulse.-C. A. Budde, Pulse Width Converted to Pulse Sequence, Electronics, 38:4, p 86-87.
