CLOCK_FOR_TEST_MESSAGES

Published:2009/7/15 1:54:00 Author:Jessie | From:SeekIC

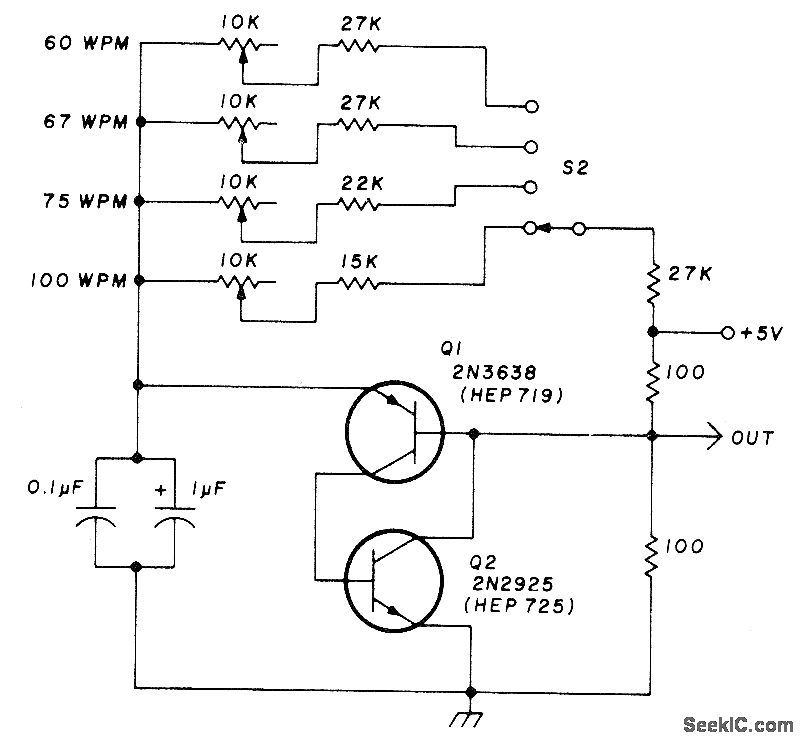

Generates negative going pulse train at choice of four baud rates, to control RTTY test-message generator at four different speeds.-K. Ebneter and J. Romelfanger, RTTY Test-Message Generator, Ham Radio, Nov. 1976, p 30-32.
