CIVIL_AIR_PATROL_CONVERTER

Published:2009/7/13 20:22:00 Author:May | From:SeekIC

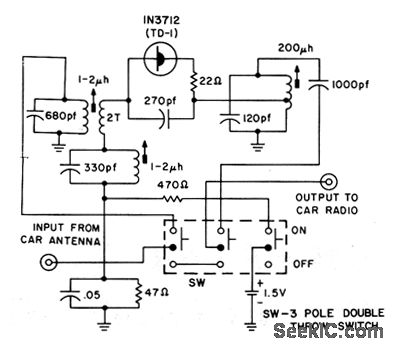

Tunnel-diode oscillator in self-oscillating converter permits reception on aviation band with auto radio.- Transistor Manual, Seventh Edition, General Electric Co.1964,p358.
