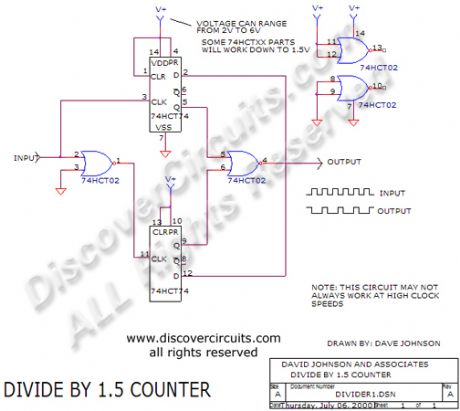

CIRCUIT FORMS DIVIDE BY 1.5 COUNTER

Published:2012/9/4 20:13:00 Author:Ecco | Keyword: CIRCUIT FORMS DIVIDE , 1.5 COUNTER | From:SeekIC

Two inexpensive ICs divide a TTL clock signal by 1.5. By following the circuit with another flip/flop, you could also generate a divide by three function. Source: discovercircuits
