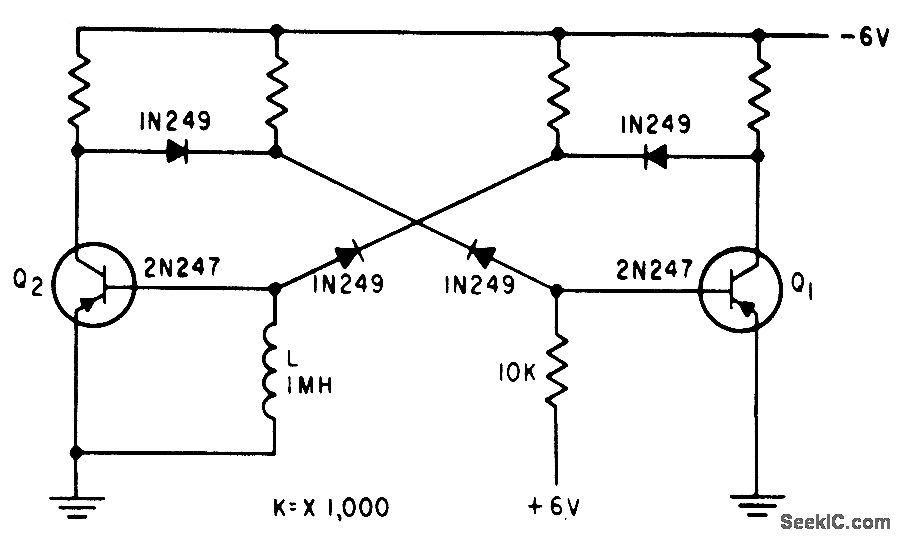

CHOKE_CONTROLLED_ONE_SHOT

Published:2009/7/16 10:17:00 Author:Jessie | From:SeekIC

Provids output pulses longer in duration than input trigger. Can be triggered by either negative or positive pulse. –W. M. Carey,Using Inductive Control in Computer Circuits, Electronics, 32:38, p 31-33.
