Published:2009/7/11 3:35:00 Author:May | From:SeekIC

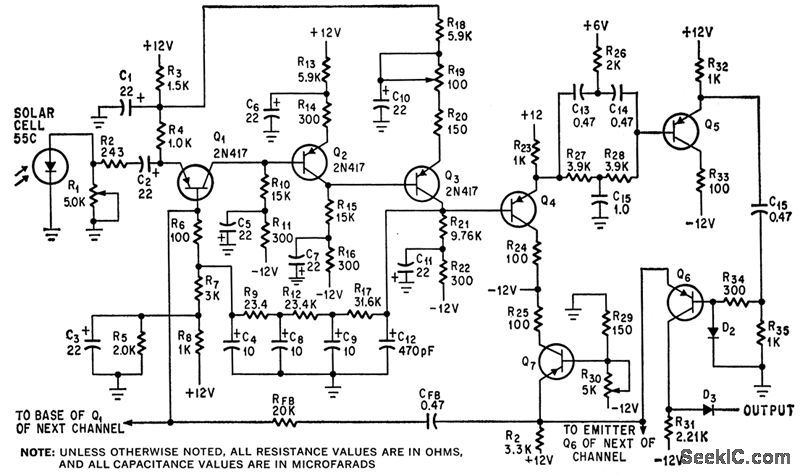

Circuit shows one channel of solar-cell sigmctl amplifier and section of switching bolck for experimental character recognition system.-P.H. Howard, Feedback System Detects 1% Amplitude Difference,Electronics,38:10,p68-70
