CASCADED_DISTANCE_MARK_DIVIDER

Published:2009/7/14 21:38:00 Author:May | From:SeekIC

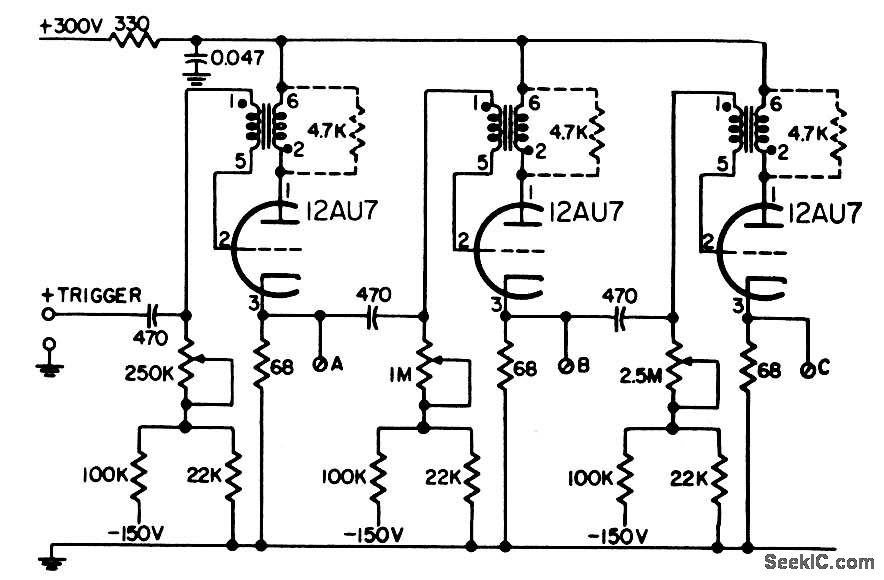

With 1-mile markers used as input trigger, output A, B, and C give 2 to 5,10 to 25, and 20 to 50-mile distance marks, respectively, Grid Potenliometers control exact mile mark obtained at each output,－NBS, Handbook Preferred Circuits Navy Aeronautical Electronic Equipment. Vol.1, Electron Tube Circuits,1963, p N7－5.
