Brightness adjustment circuit with visible brightness sensor LX1970

Published:2012/8/26 22:50:00 Author:Ecco | Keyword: Brightness adjustment , visible brightness sensor | From:SeekIC

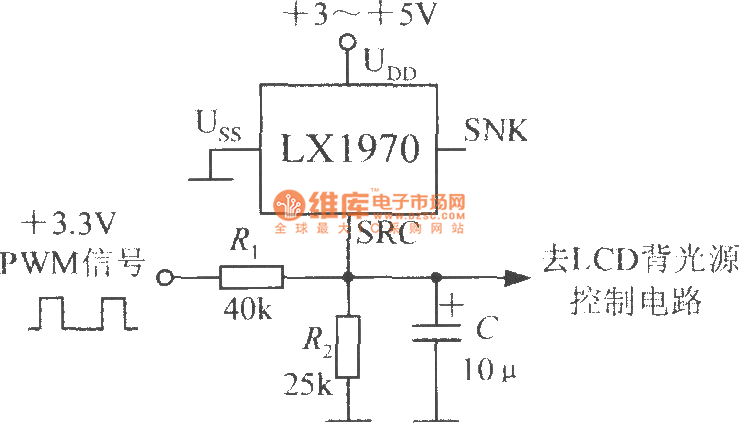

It only needs to change duty cycle of PWM (pulse width modulation) signal, the backlight brightness can be adjusted to suit individual needs. PWM signal voltage range is 3. 3V.
