Bistable circuit with multi- input side

Published:2012/11/18 21:43:00 Author:Ecco | Keyword: Bistable circuit , multi- input side | From:SeekIC

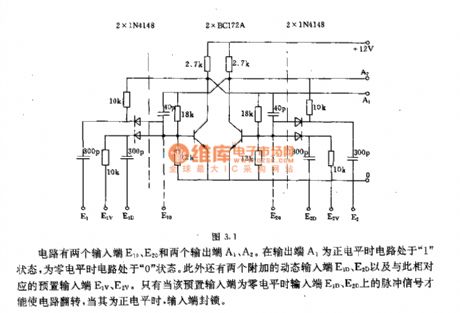

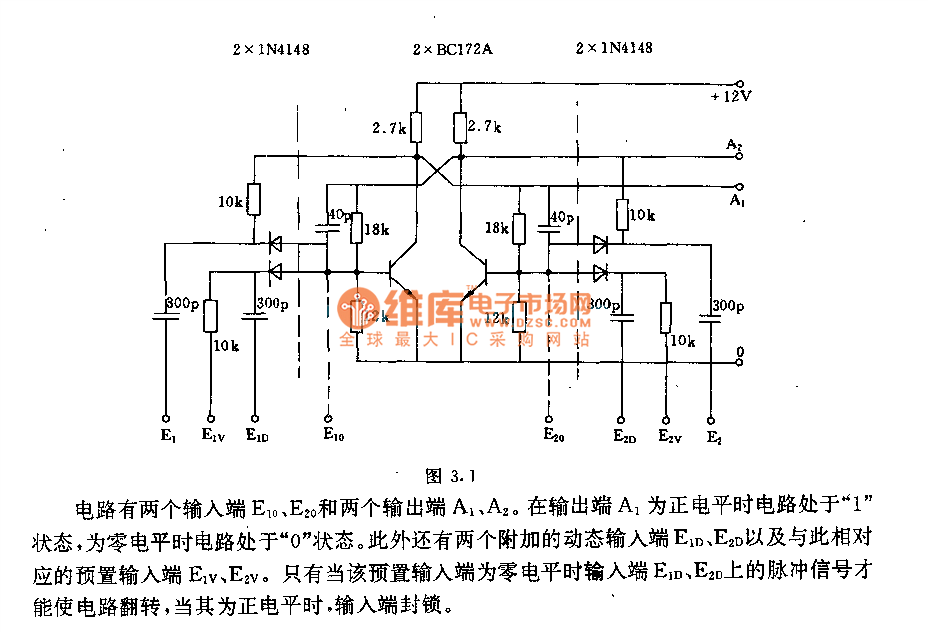

The circuit has two input terminals E10, E20, and two output terminals A1 , A2. When output terminal A1 is at the positive level, the circuit is in the 1 state and 0 state for 0 level. In addition, there are two additional dynamic inputs E1D, E2D, and corresponding preset input ends E1V, E2V. Only when the preset input terminal is 0 level, the pulse signals on input terminals E1D and E2D can make circuit flip to its positive level, then the input terminal is locked.
