Bipolar_offset_true_zero_D_A_converter

Published:2009/7/23 21:48:00 Author:Jessie | From:SeekIC

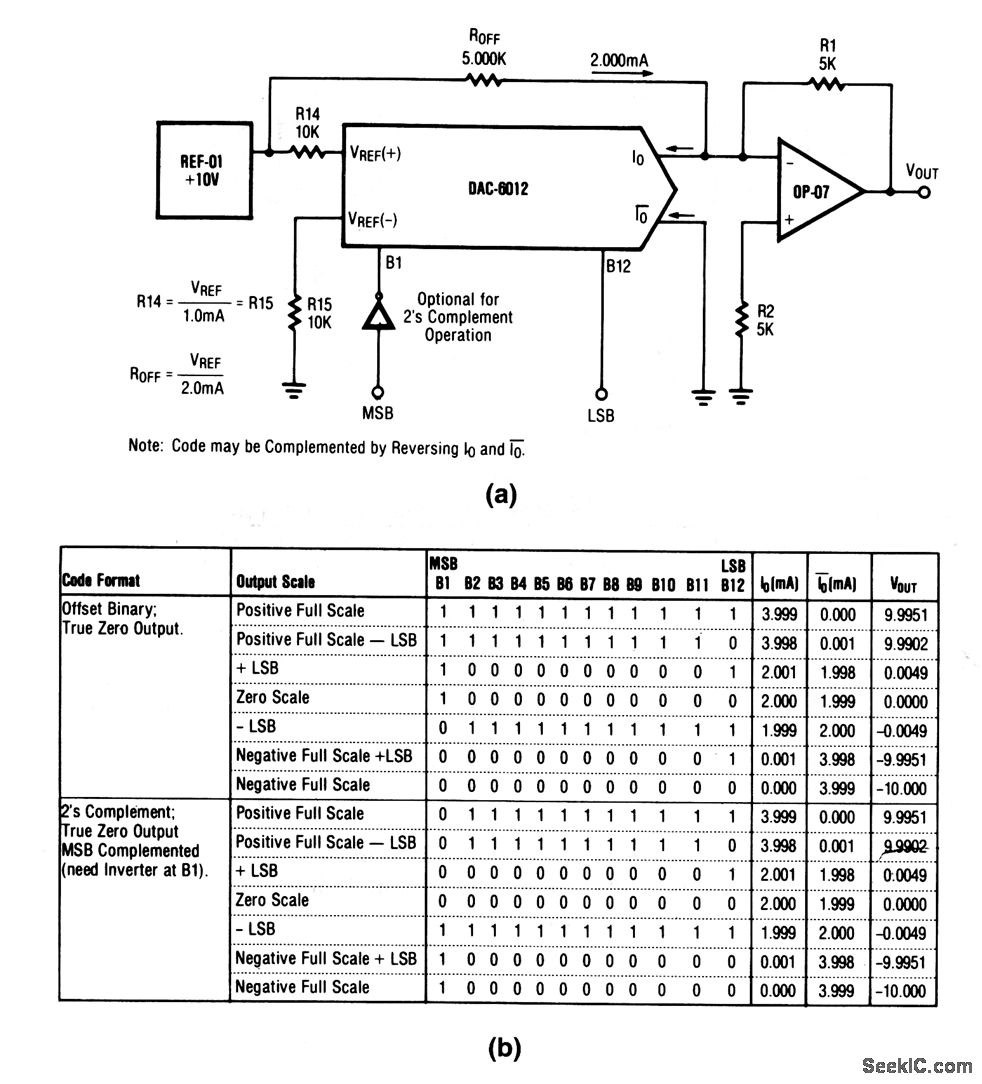

This circuit shows a DAC/op-amp combination that is bipolar-offset (true zero) operation. Full-scale adjustment can be in Fig. 6-39B.
