Binary counter circuit

Published:2012/8/15 23:05:00 Author:Ecco | Keyword: Binary counter | From:SeekIC

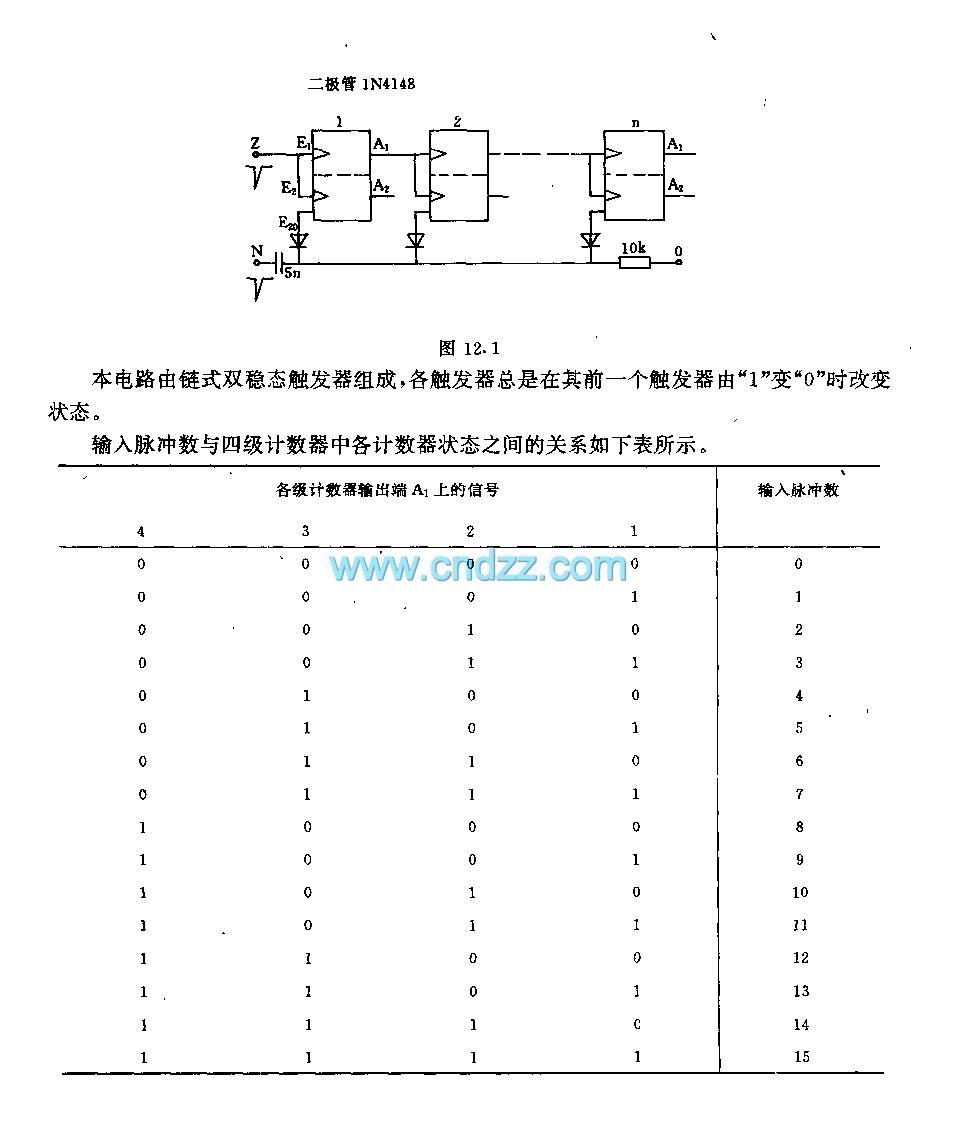

This circuit consists of chained flip flops, and each flip-flop change state when its former trigger changes from 1 to 0. The relationship between the input pulses and each counter status in four counters is shown in the table below.
