Bi_quad_notch_filter

Published:2009/7/24 12:52:00 Author:Jessie | From:SeekIC

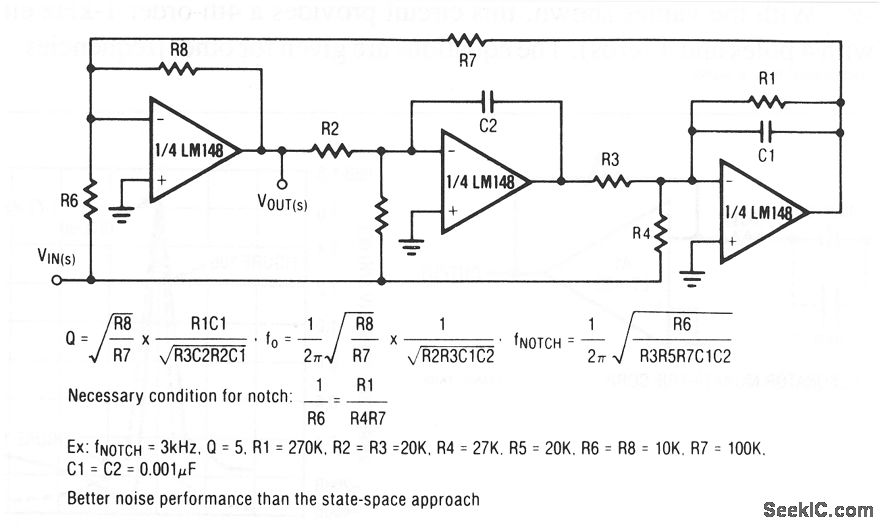

This circuit uses three sections of a quad op amp to form a notch filter. Circuit values are given for a 3-kHz notch with a Q of 5. The equations are given for other frequencies. Raytheon Linear integrated Circuits, 1989, p. 4-266.
