Bedside lamp safety switch circuit (3)

Published:2011/7/1 3:22:00 Author:Ecco | Keyword: Bedside lamp , safety switch | From:SeekIC

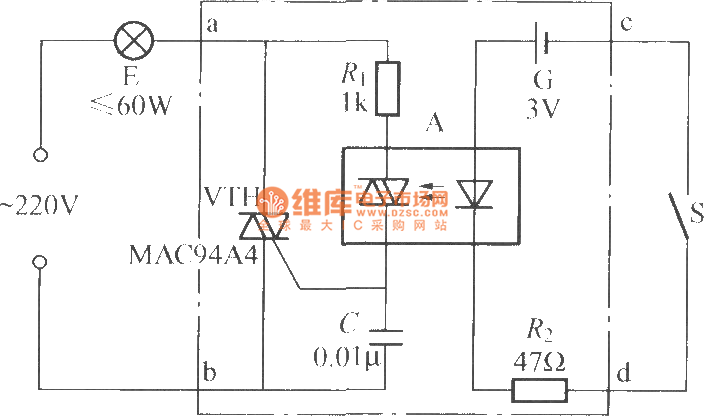

The circuit shown as the chart is bedside lamp safety switch which is composed of batteries and optical coupler, and it can completely isolate bedside switch S and AC, so security is very good.
