Basic_tuned_circuit

Published:2009/7/24 13:40:00 Author:Jessie | From:SeekIC

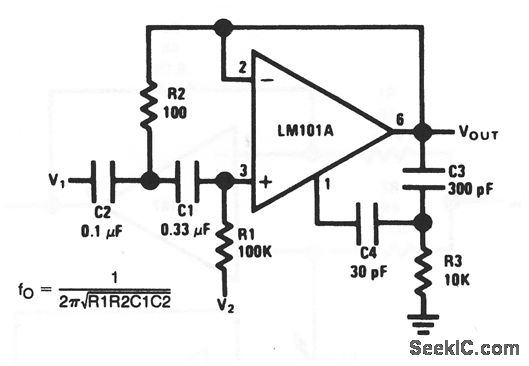

This circuit uses an LM101A to form a single-stage tuned circuit. The output frequency is determined by the values of R1, R2, C1, and C2, as shown by the equation. National Semiconductor, Linear Applications Handbook, 1991, p. 95.
