Basic_squaring_circuit

Published:2009/7/24 23:57:00 Author:Jessie | From:SeekIC

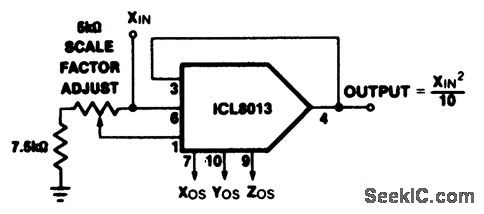

This circuit shows an ICL8013 (refer to Fig. 3-15) connected as a basic ) squaring circuit(with can also be used as the basis for a frequency doubler).
