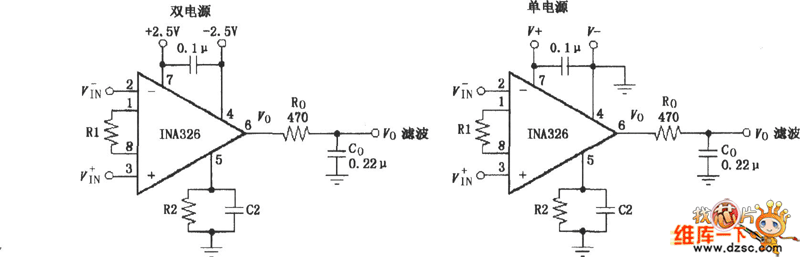

Basic connection diagram of INA326/327 signal and power

Published:2012/12/18 1:38:00 Author:Ecco | Keyword: Basic connection, signal , power | From:SeekIC

It selects most accurate 0.1μF capacitor for the power supply filtering, and it should be placed as close as possible to the chip power pin. Ro, Co are an output filters which can filter the output noise of circuit; at the same time, it can be used as the input filter for next-stage circuit, such as an input filter of analog - digital converter. The output voltage is based on the ground terminal of R2 / / C2 basis.
