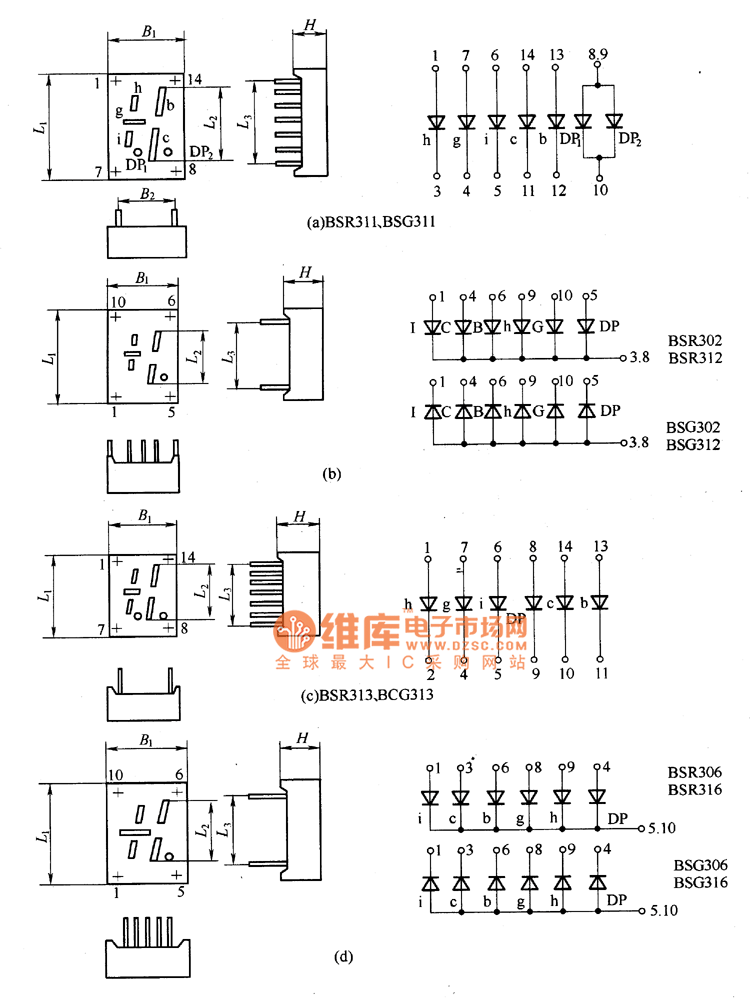

BSR (G) series of LED symbol display appearance circuit diagram

Published:2011/5/17 4:17:00 Author:Ecco | Keyword: BSR (G) series , LED , symbol, display , appearance | From:SeekIC

BSR (G) series of LED symbol display BSR (C) series of LED symbol display uses potassium phosphide light-emitting diodes as light source and reflection cavity cover made by ABC resin to constitute character display. It has the features of small size, low voltage, high brightness, long life and wide view, and it is mainly used in digital displays as the characters.
