BRIDGE_GATE_WITH_TOROID

Published:2009/7/16 1:59:00 Author:Jessie | From:SeekIC

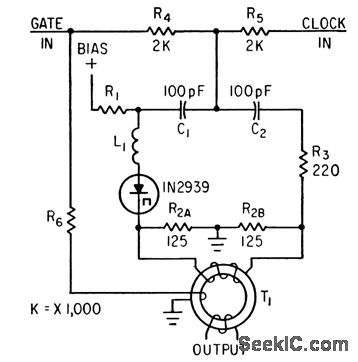

Portion of gate input signal is fed to wire threading output toroid, to cancel output spike of ac bridge.-F. W. Kantor, Tunnel-Diode Gate has Sub-nanosecond Rise Time, Electronics, 35:15, p 62-64.
