BLOCKING_OSCILLATOR_FOR_SHIFT_REGISTER

Published:2009/7/16 1:42:00 Author:Jessie | From:SeekIC

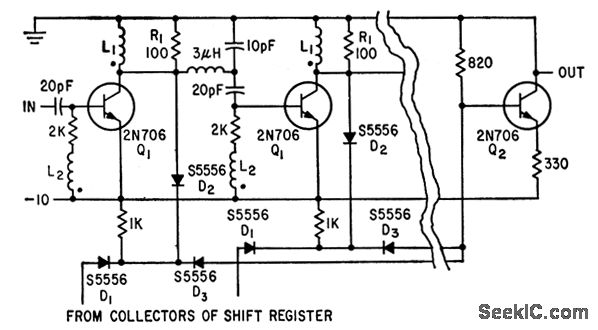

Used to generate series of ten pulses, 20 nsec wide and spaced 40 nsec apart. Each of the ten blocking oscillator stages Q1 is allowed to overshoot and trigger the following stage through an IC coupling network that provides additional delay.-B. K. Ericksen and J. D. Schmidt, Random Pulse Generator Tests Circuits, Encodes Messages, Electronics, 34:25, p 56-59.
