BIPOLAR_INPUT_FOR_V_F_CONVERTER

Published:2009/7/10 4:35:00 Author:May | From:SeekIC

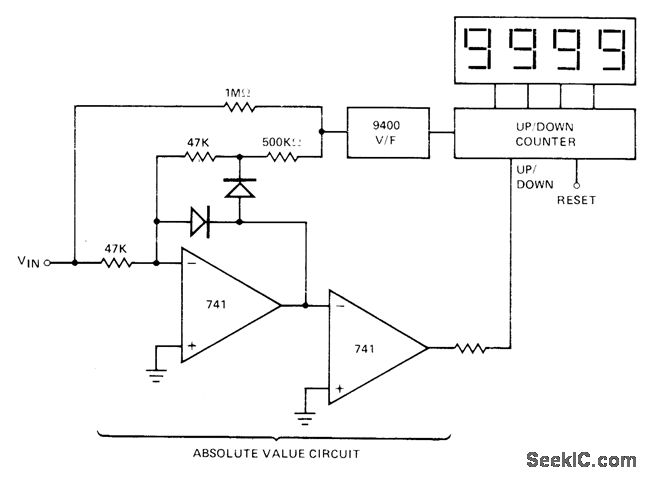

Absolute-value integrator circuit gives effect of generating negative frequencies when input signal is negative by making counter count up for positive voltage and count down for negative voltage. Diode types are not criticaL-M. O. Paiva, Applications of the 9400 Voltage to Frequency Frequency to Voltage Converter, Teledyne Semiconductor, Mountain View, CA, 1978, AN.10, p 3.
