BIDIRECTIONAL_MONO

Published:2009/7/1 4:47:00 Author:May | From:SeekIC

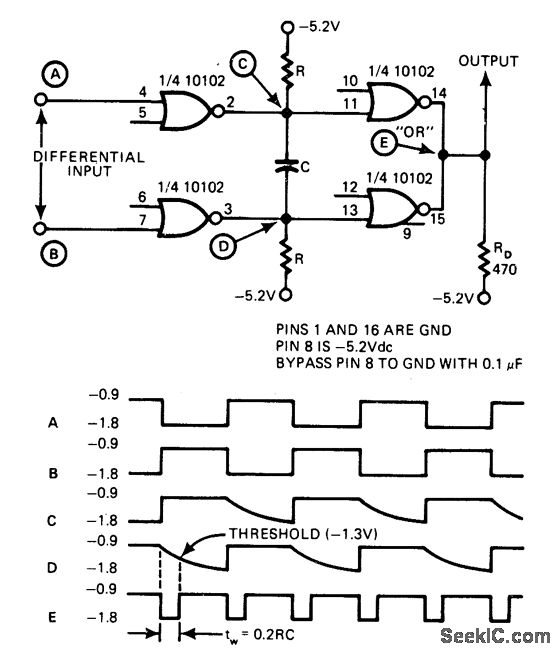

Requires only one IC, three resistors, and one capac;tor. WilI trigger on both positive- and negative-going transi-tions, as required in critical timing applications Involving pulses narrowerthan 50 ns. Capacitor altemately discharges through one pulldown resistor to threshold, then the other. Output gates are tied together to form common output.Width of pulse is defined by values of components.-W. A. Palm Bidirectional ECL One-Shot Uses a Single IC. EDN Magazine. Jan. 5. 1977. p 41-42.
