BATTERY_TRIGGERED_ac_SWITCH

Published:2009/7/10 5:02:00 Author:May | From:SeekIC

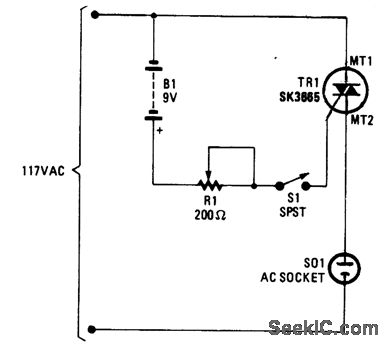

Using this method, a small switch (S1) can con-trol a large ac load. R1 is adjusted for reliable trig-gering and should be as large as possible.
