BATTERY_STATUS_INDICATOR

Published:2009/7/3 4:22:00 Author:May | From:SeekIC

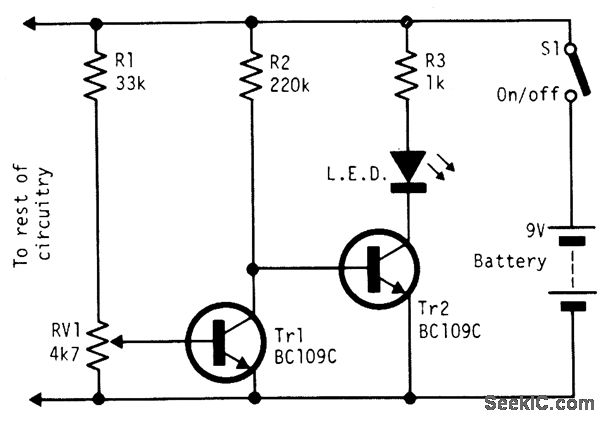

Continually monitors battery voltage during use and consumes only about 250 pA (until the end point is reached). Near the end point Tr1 turns off, allowing Tr2 to illuminate the LED to increase current drain further leading to a distinct turn off point.
