BASIC_SQUAREN_TRIANGLE

Published:2009/7/6 2:43:00 Author:May | From:SeekIC

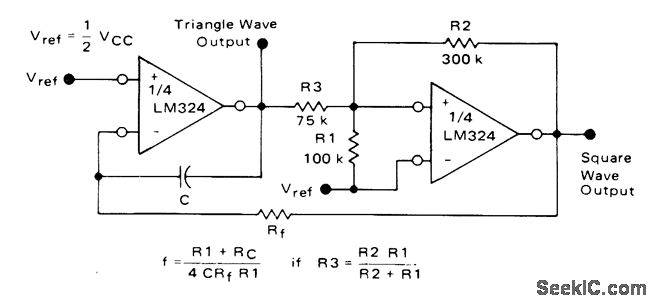

Requires only two sections of LM324 quad differential-input opamp to provide choice of triangle or squarewave outputs at frequency determined by values of components. Supply voltage range is 3-32 V.- Quad Low Power Operational Amplifiers, Motorola, Phoenix,AZ, 1978, DS 9339 R1.
