BASIC_RCTL_LOGIC

Published:2009/7/16 3:40:00 Author:Jessie | From:SeekIC

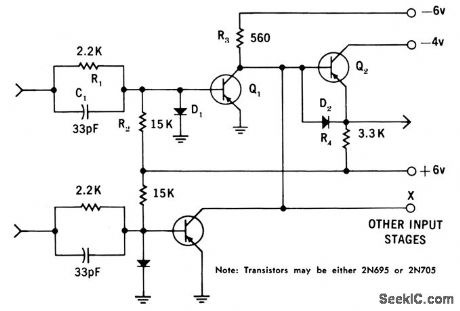

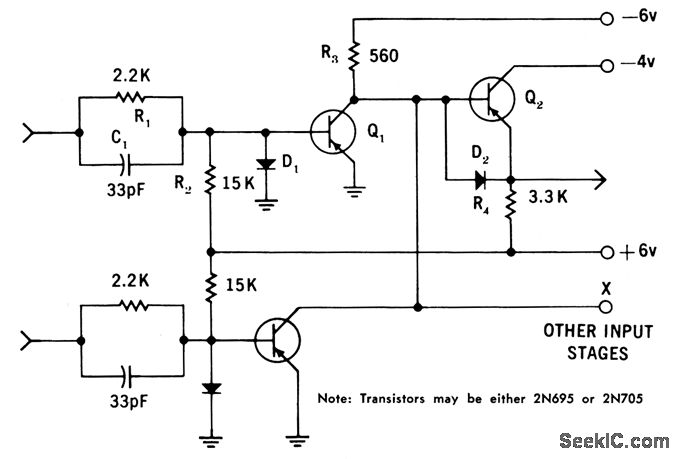

Transistors used provide ultrahigh switching speed for computers and have low stored charge along with gain-bandwidth product above 300 Mc. Circuit can readily be adapted as flip-flop, nor circuit, and Schmitt trigger.-W. D. Roehr, For Computers... Basic RCTL Circuits, Motorola Application Note AN-129, Nov. 1965.
