BASIC_PNP_GATE

Published:2009/7/16 2:02:00 Author:Jessie | From:SeekIC

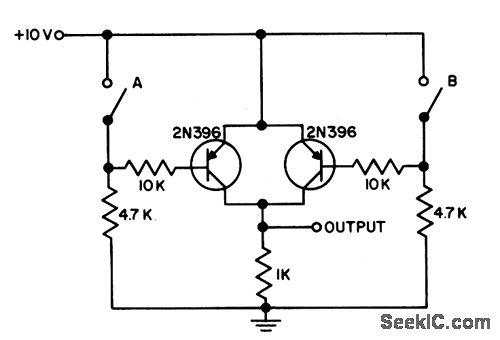

Circuit is and gate if closing of switch is an input, Circuit is or gate if opening of switch is an input. Provides phase inversion of input without complicating overall circuitry.- Transistor Manual, Seventh Edition, General Electric Co., 1964, p 176.
