BASIC_HARTLEY

Published:2009/7/16 5:28:00 Author:Jessie | From:SeekIC

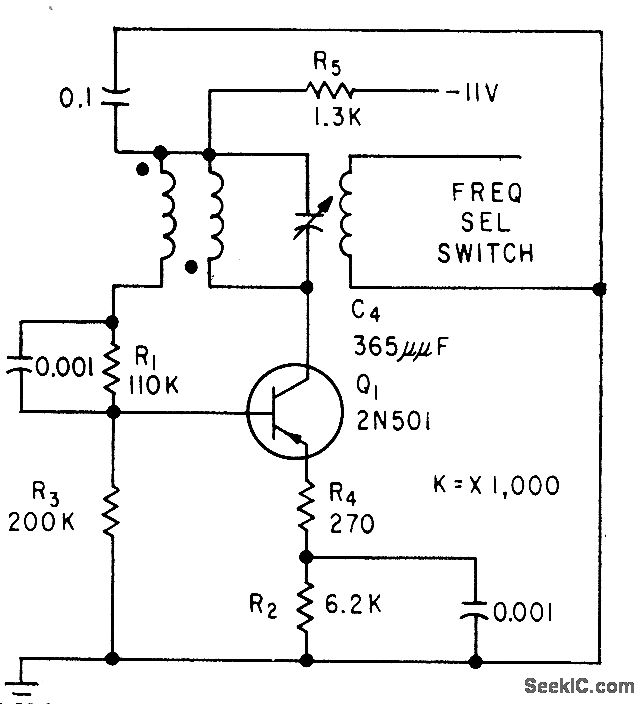

Sine-wave oscillator, tunable over 3:1 frequency range by C4, uses switching transistor. Used in pulse generator for testing high-speed digital computers.-L. Neumann, Transistorized Generator for Pulse Circuit Design, Electronics, 32:14, p 47-49.
