BAR_GRAPH_READOUT

Published:2009/7/1 4:50:00 Author:May | From:SeekIC

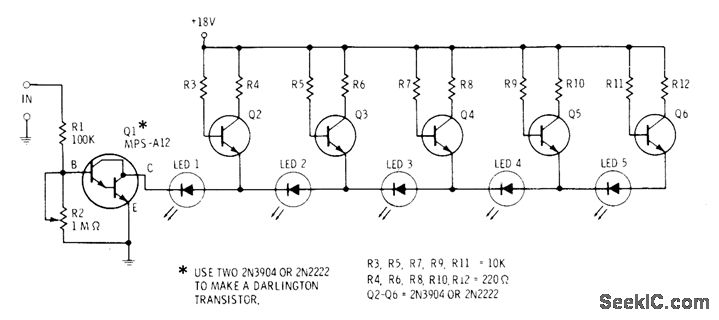

Transistors switch row of LEDs on in succession to give rising-bar display indicating input voltage. R2 can be ad-justed from minimum range of 0.1 to 0.5 V in 0.1-V increments for five LEDs to maxinlum of 1.0 to 10.0 V in 1-V increments. Input resistance of circuit is above 100,000 ohms.-F, M. Mims, Electronic Circuitbook 5: LED Projects, Howard W. Sams, Indianapolis, IN, 1976, p 86-88.
