BAR_GRAPH_DISPLAY_DRIVER_SCALE_SETTING

Published:2009/7/13 4:31:00 Author:May | From:SeekIC

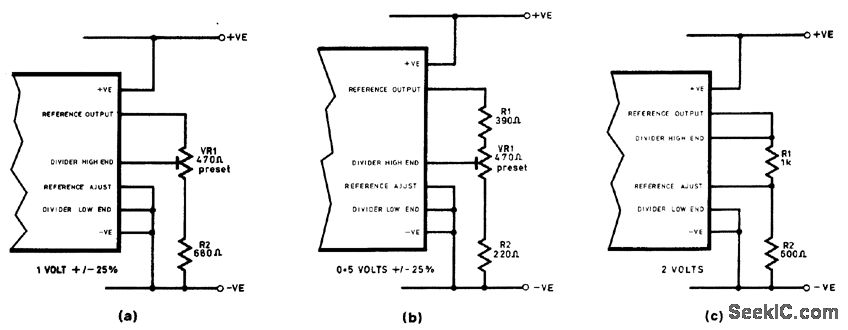

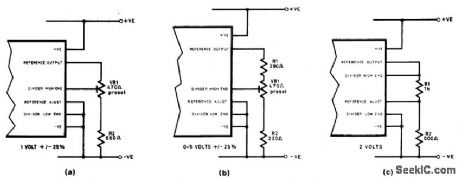

The figure shows ways of varying the reference with the internal generator of the bar-graph driver chip. (a) and (b) show two obtain full scales of 1 V and 0.5 V, respectively. In (c), the reference adjust and internal reference are used to produce 2 V.
