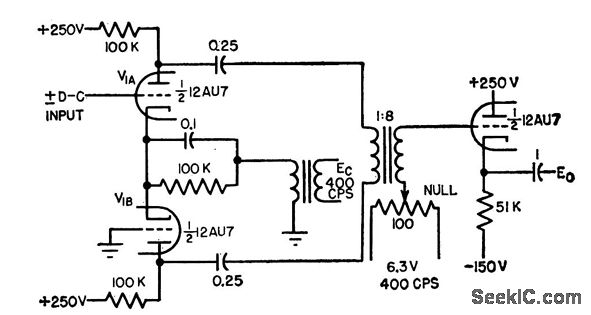

BALANCED_TRIODE_SINE_WAVE_MODULATOR

Published:2009/7/21 0:04:00 Author:Jessie | From:SeekIC

Gives sinusoidal output without filtering-Can be used for either open-loop or error signal modulation when high input impedance and low-distortion sinusoidal output are required. Long-term drift stability is less than 1 mv per hour referred to output.-L. S. Klivans, Modulators for Automatic Control Systems, Electronics, 31:1, p 82-84.
