BALANCED_MODULATOR

Published:2009/7/6 22:51:00 Author:May | From:SeekIC

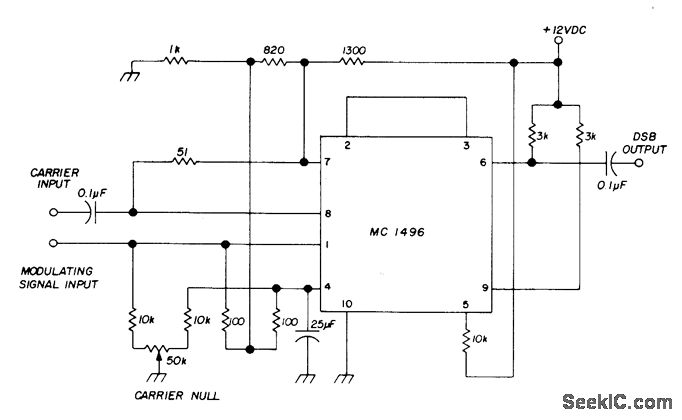

High-performance balanced modulator for 80-meter SSB transceiver uses Motorola MC1496IC，Adjust 50K pot for maximum carrier suppression of doublesideband output.-D, Hembling, Solid-State 80-Meter SSB Transceiver， Ham Radio, March1973,p6－17
