BALANCED_LINE_DRlVER

Published:2009/7/2 4:13:00 Author:May | From:SeekIC

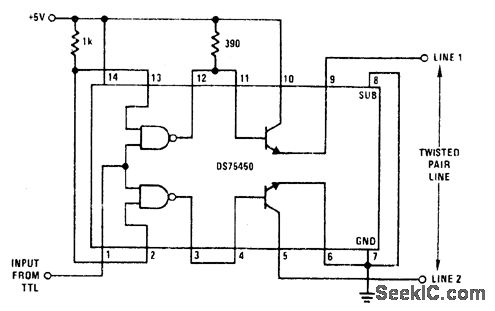

National DS75450 dual peripheral driver serves as interface between TTL and twisted-pair line. Output line 1 is terminated to ground through haff of line impedance, and line 2 is terminated to +5 V through half of line impedance. Output current is 300 mA.- Interface Databook, National Semiconductor, Santa Clara, CA, 1978, p 3-20-3-30.
