BA8201 ceiling fan single chip microcomputer integrated circuit

Published:2011/6/13 21:04:00 Author:Christina | Keyword: ceiling fan, single chip, microcomputer, integrated circuit | From:SeekIC

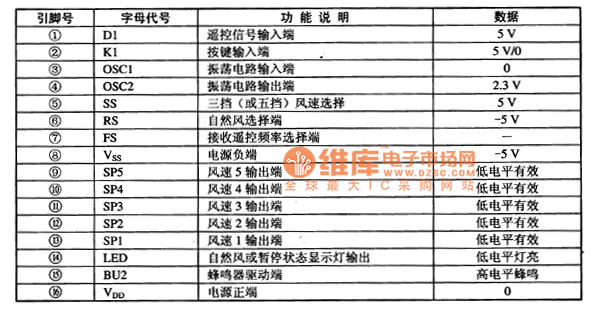

The BA8201 is designed as one kind of ceiling fan single chip microcomputer integrated circuit that is produced by the Toyo company, and it can be used in the program control system of various types of ceiling fan. The BA8201 uses the 16-pin dual-row DIP plastic package, the pin functions and data are as shown in table 1, the typical application circuit is as shown in figure 1. Table 1 The pin functions and data of the BA8201 Figure 1 The typical application circuit of the BA8201
