BA3312N recording and playback processing integrated circuit

Published:2011/6/22 8:40:00 Author:Christina | Keyword: recording, playback, processing, integrated circuit | From:SeekIC

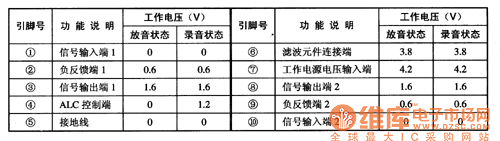

The BA3312N is designed as one kind of recording and playback processing integrated circuit that is produced by the Toyo company, it can be used in the circuits of walkmans and repeaters such as the Aiwa and the Sony series walkman. 1.Features The BA3312N is composed of the recording and playback preamplifier circuit, the ALC signal control circuit, the voltage stabilization power supply circuit and other auxiliary circuit. 2.Pin functions and data The BA3312N uses the 10-pin package, the pin functions and data are as shown in table 1. Table 1 The pin functions and data of the BA3312N
