BA3107 fan single chip microcomputer integrated circuit

Published:2011/6/22 8:51:00 Author:Christina | Keyword: fan, single chip, microcomputer, integrated circuit | From:SeekIC

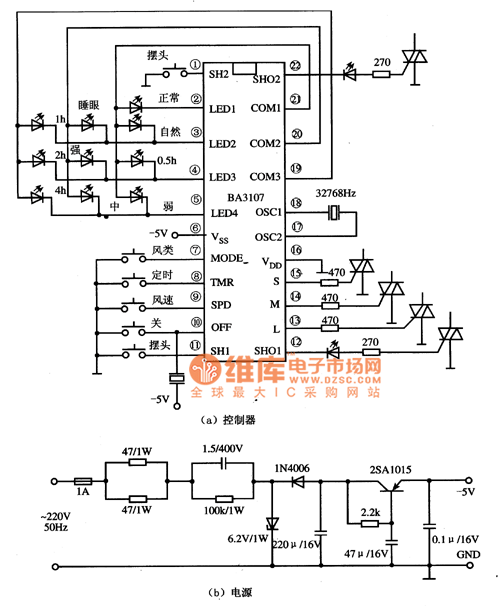

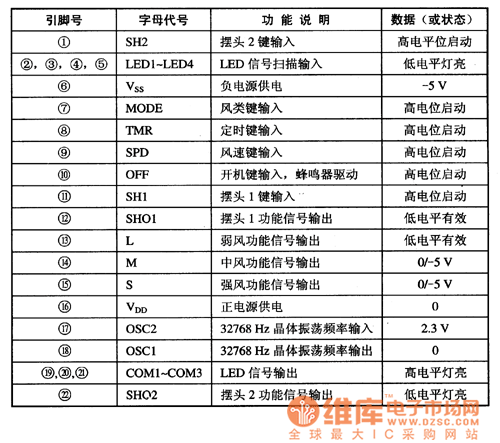

The BA3107 is designed as one kind of fan single chip microcomputer integrated circuit which is produced by the Toyo company, and it can be used in all kinds of fan control program circuits. The BA3107 uses the 22-pin dual-row DIP package, the typical application circuit is as shown in figure 1, the pin functions and data are as shown in table 1. Figure 1 The typical application circuit of the BA3107 Table 1 The pin functions and data of the BA3107
