Audio / video conversion integrated circuit diagram

Published:2011/8/21 22:21:00 Author:Ecco | Keyword: Audio / video conversion | From:SeekIC

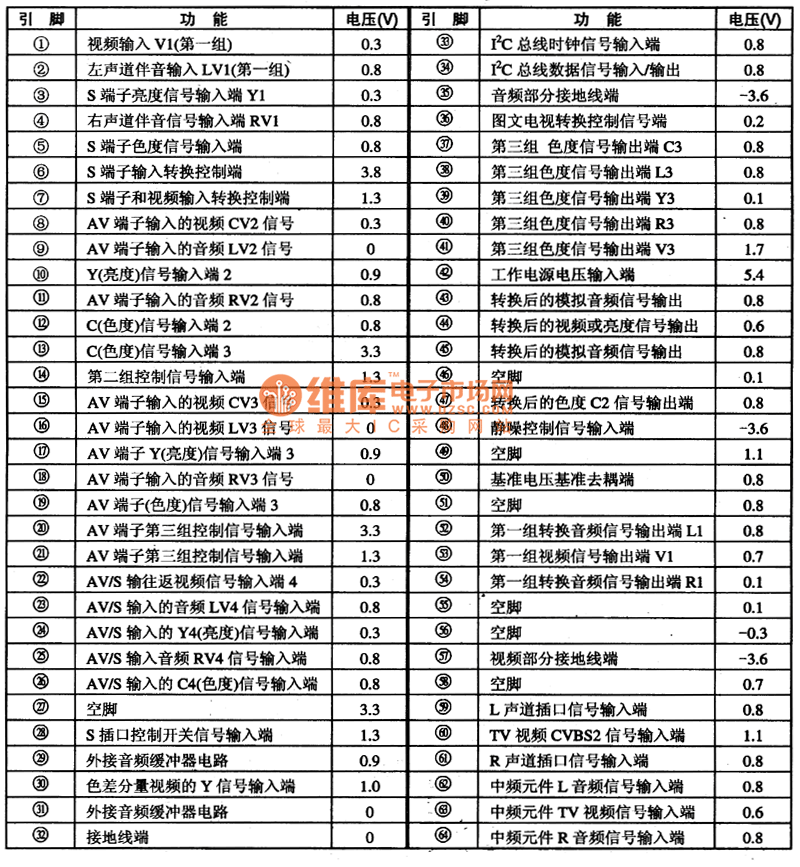

CXA2069Q is the new model audio / video conversion integrated circuit manufactured by Sony Corporation of Japan, and it is used in the Sony series of picture in picture, back projection color TV. 1. FeaturesCXA2069Q IC's input signal is high / medium frequency component output R / L channel TV audio signal, and the main screen of the video signal CVBSl, Vice-screen video signal CVBS2 and so on. CXA2069Q can also be input the four groups of signals to connect to the audio as Na R / L channel signal input end.2. Pin functions and data XA2069Q IC uses the 64-pin package, the integrated circuit pin functions and data are Table 1.
