Array speech synthesis series circuit diagram

Published:2011/8/4 1:25:00 Author:Ecco | Keyword: Array speech synthesis | From:SeekIC

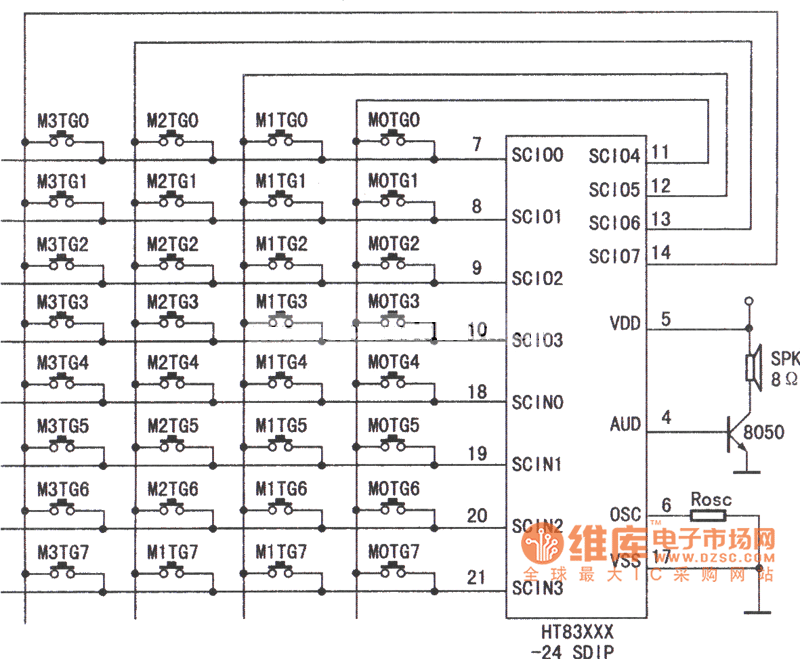

The speech synthesis circuit uses four series more input or output components to form the matrix keyboard. Figure shows HT83XXX series of 32-key application circuit diagram. This series of voice circuits can achieve statement spelling and other functions by plugging the microprocessor (CPU). This is the connection diagrambetween the CPU and HT82810.
