Antenna tunning circuit for 27MHz CB band

Published:2012/9/12 21:13:00 Author:Ecco | Keyword: Antenna tunning, 27MHz CB band | From:SeekIC

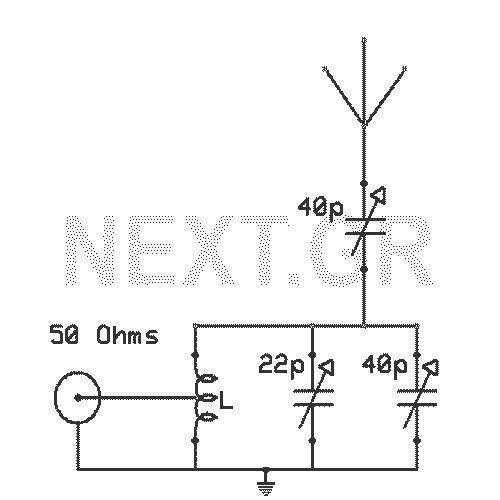

The antenna tunning circuit can accommodate 1/2 wave length antennas or higher, for input resistances of 50 Ohms which make it suitable for CB (Citizen Band) transceivers. C1 is for fine tunning and C2 is just for tunning. Turning C3 with the help of C2 you can set the SWR to 1:1. The Coil L is made of 11 turns of insulated copper wire with diameter of 1mm. Source: NEXT.GR
