Analog_multiplier_divider

Published:2009/7/23 21:47:00 Author:Jessie | From:SeekIC

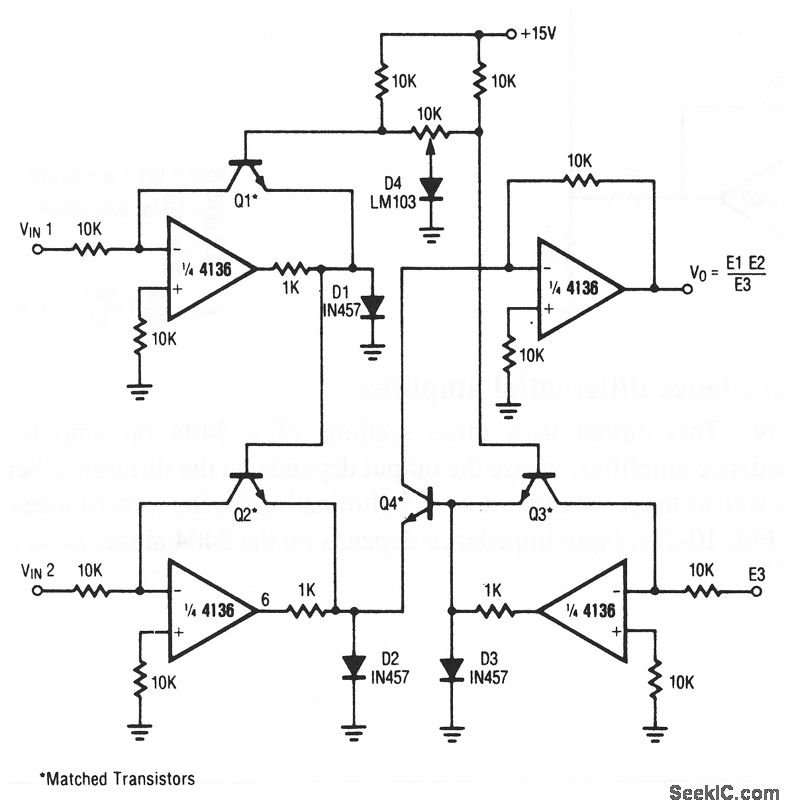

This circuit uses all four sections of a 4136 to form a circuit that both multiplies and divides (simultaneously if required). Virtually any pnp transistors can be used for Q1 through Q4, provided that the transistors are matched. The accuracy of the circuit multiplication and division depends on transistor matching.
