ac_INTEGRATOR

Published:2009/6/19 4:41:00 Author:May | From:SeekIC

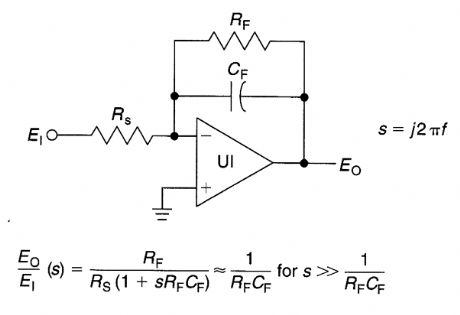

This op-antp circuit can be used with a wide variety of op amps. The values of Rf and Ri depend on gain, but will be 1 kΩ to 1 MΩ in most cases. Cf depends on the pole frequency needed. U1 is a 741-type op amp, etc.
