WHEATSTONE_BRIDGE

Published:2009/6/22 22:35:00 Author:May | From:SeekIC

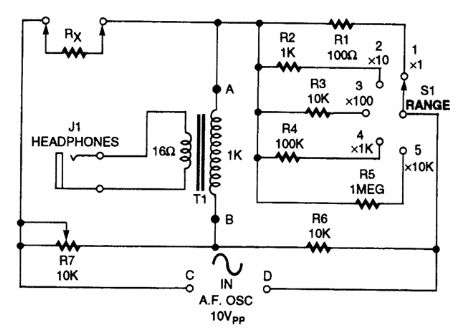

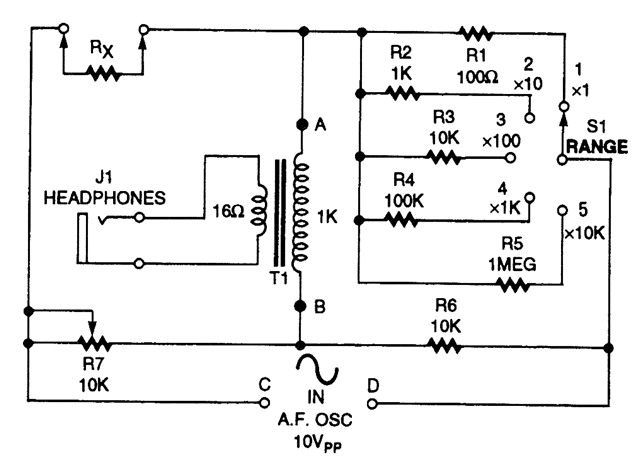

This circuit can be used to measure resistances. R7 is calibrated and fitted with an indicator dial, Lhen: A frequency of 1 kHz for the audio oscillator is usually used.
