WEIGHTING_CIRCUIT

Published:2009/7/14 3:00:00 Author:May | From:SeekIC

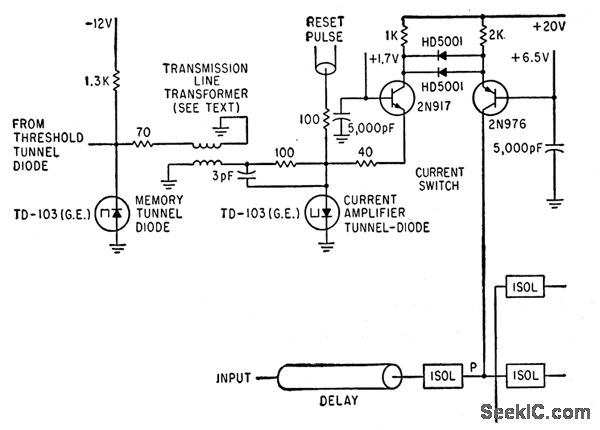

Circuit introduces precise amount of current into point P within few nsec in response to output of threshold tunnel diode, contributing to accurate conversion of wideband analog signals into 64 levels that are described by six bits of binary language.-H. R. Schindler, Semiconductor Circuits in a UHF Digital Converter, Electronics, 36;35, p 37-40.
