VIDEO_dc_RESTORE_CIRCUIT_

Published:2009/6/19 4:58:00 Author:May | From:SeekIC

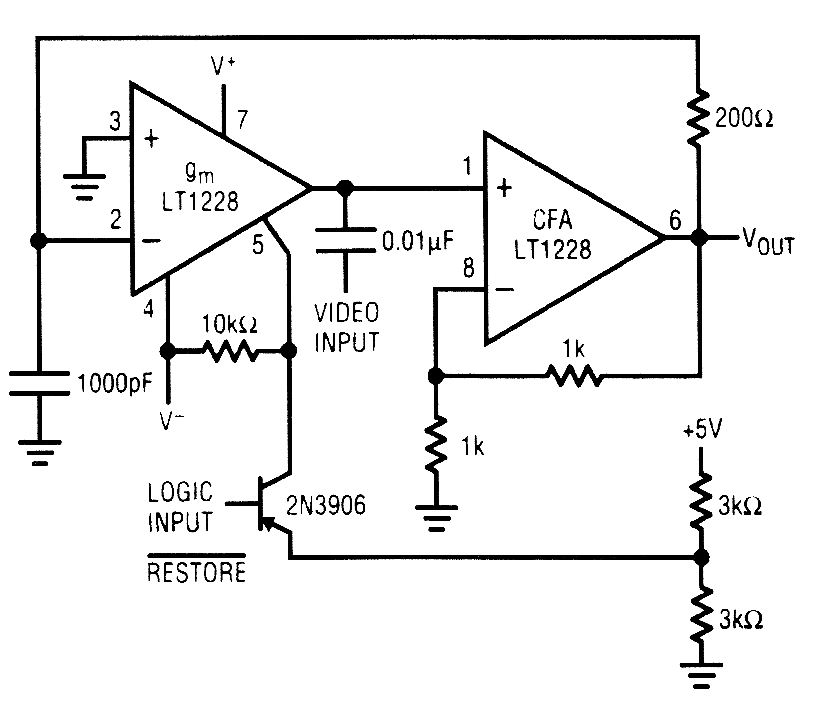

This circuit restores the black level of a monochrome composite video signal to 0 V at the beginning of every horizontal line. This circuit is also useful with CCD scanners to set the black level.
