TWO_CHANNEL_PANNING_CIRCUIT

Published:2009/6/24 2:12:00 Author:May | From:SeekIC

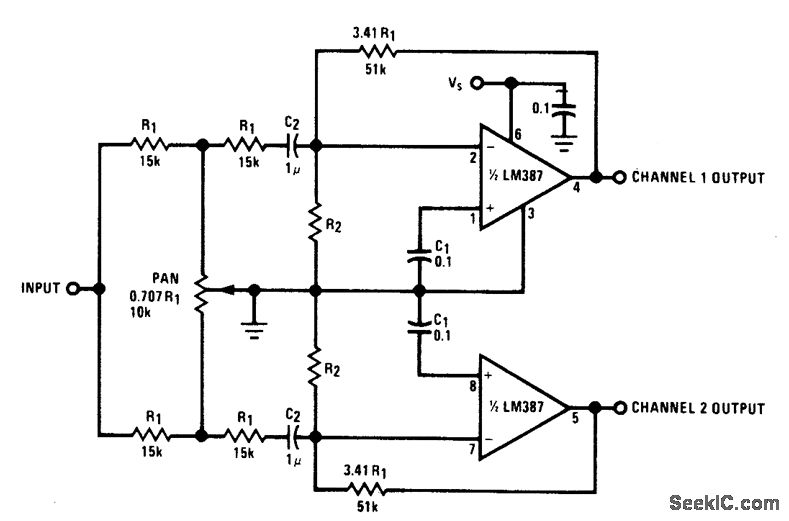

This panning circuit (short for panoramic control circuit) provides the ability to move the apparent position of one microphone's input between two output channels. This effect is oftern required in recording studio mixing consoles. Panning is how recording engineers manage to pick up your favorite pianist and float the sound over to the other side of the stage andback again.
