TTL_BASED_SPEAKER_DRIVER

Published:2009/6/18 4:52:00 Author:May | From:SeekIC

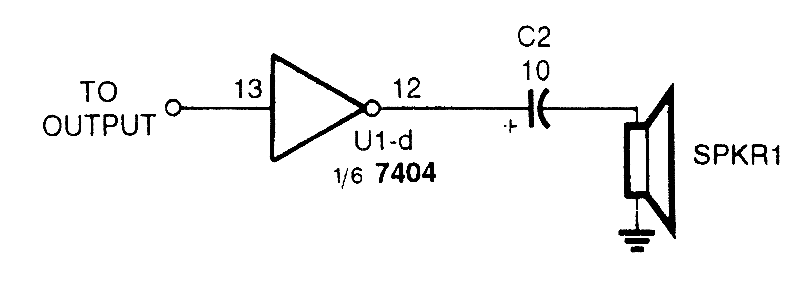

A TTL IC, such as a 7404, can drive a small speaker with enough audio to be used as an alarm or annunciator. The speaker can be a 32- or 100-Ω unit.
