Trigger_flip_flop

Published:2009/7/24 9:07:00 Author:Jessie | From:SeekIC

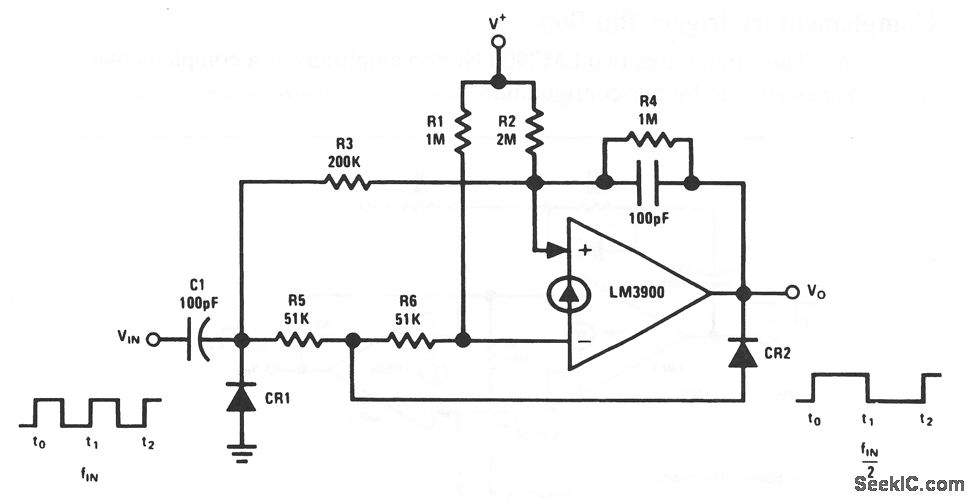

This circuit uses an LM3900 Norton amplifier as a trigger flip-flop as a divide-by-two configuration. CR1 and CR2 can be 1N914s or equivalent. National Semiconductor, Linear Applications Handbook, 1991, p. 241.
